APA – Double End Adjustor with Pourover Center Frame & Liner

The APA unit allows access from either end when the center section is obstructed. This pit allows for pass through convenience of mechanicals. Units are available in any of our nominal sizes in 6 inch increments in length ,width and depth.

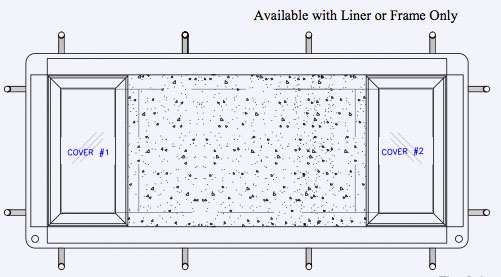

APA variation

Sizing unit is accomplished by :

  1. Selecting the overall unit size needed using either the dimension information chart of the Model ADL section 2-2 or the Model POL section 3-2.
  2. Selecting the aluminum frame size needed for both accessible sides. Each can be different section 3-2 Model RCF
  3. Choose the cover size and type from Cover section 8-1,2,3

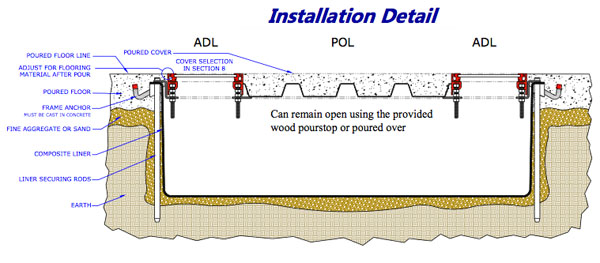

Installation Details

APA installation details
